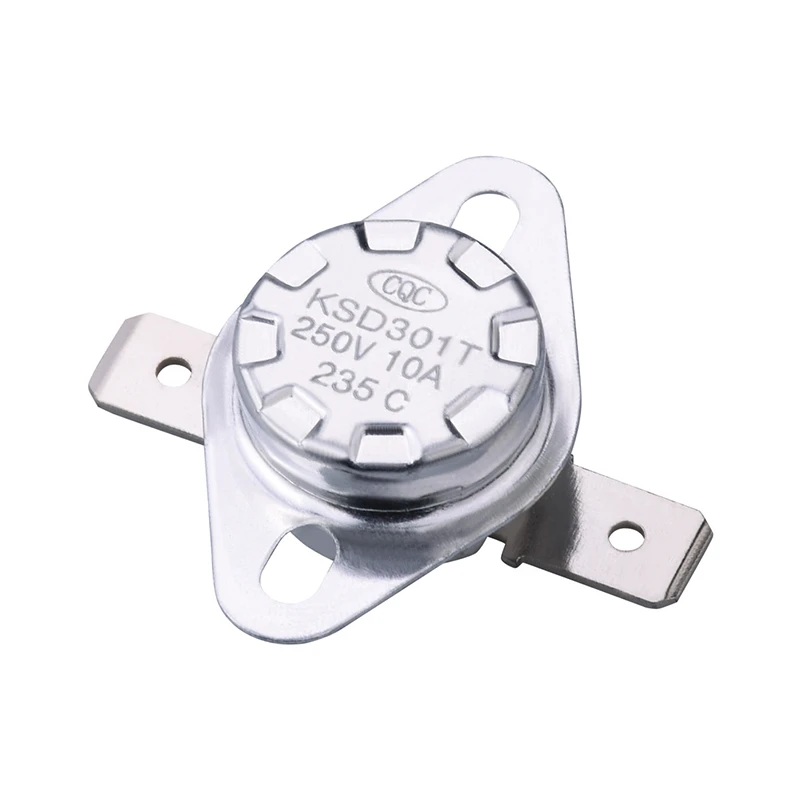

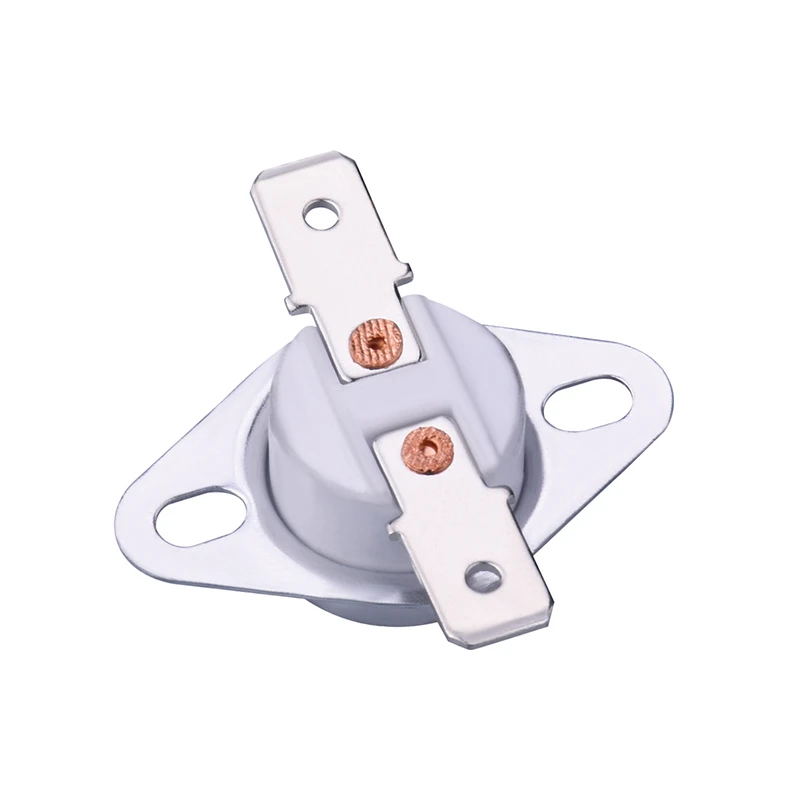

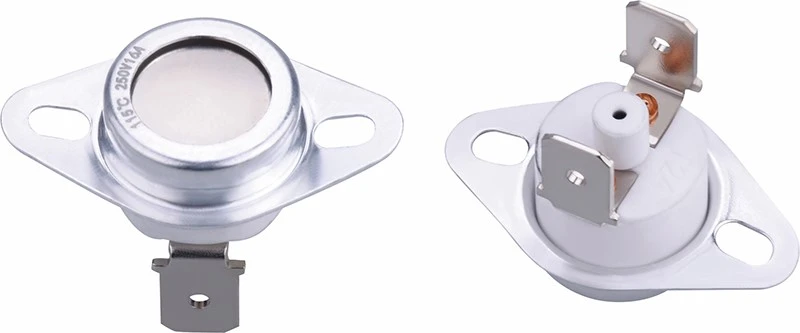

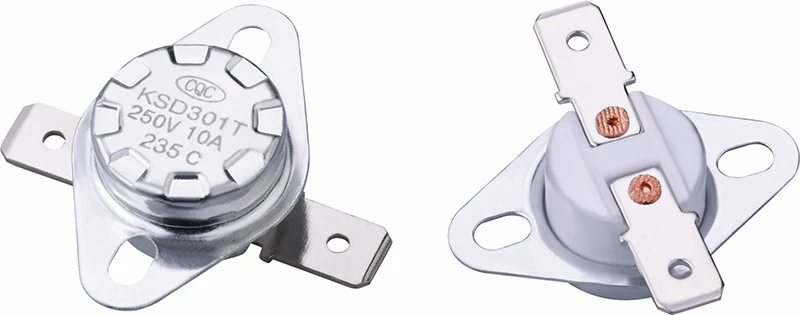

High-temperature Ceramic Thermostat

High-temperature ceramic thermostat uses the KSD-301T ceramic construction with flat connection tabs and a rotatable mounting ring. The arrangement is aimed at appliances that need a high temperature ceiling but cannot always use one fixed mounting angle; cited examples are pressure cookers, dispensers, microwaves, electric water heaters and kettles.

For High-temperature ceramic thermostat purchasing, the catalog choices can be written compactly as 10A/16A @ 250VAC, 40-260°C set points in 5°C steps, ±3°C/±5°C/±10°C accuracy, and AC2500V/S dielectric strength. The installed sensing temperature should be measured in the real product because heater contact, local airflow and sensor location alter the thermal reading.

A drawing or physical unit can be sent to Gan'en Electronics for matching before the order is frozen. In-house work covers the bimetal part, heat treatment and finished assembly; OEM, ODM and special versions are accepted. Minimum order is normally 10,000 pcs. Sample charge is waived for regular samples, freight is separate, and typical manufacturing windows are seven days for regular items and fifteen days for custom items.

High-temperature ceramic thermostat repeat lots can follow the signed-off thermal code, terminal form and ring position. The factory checks materials, work stages and outgoing goods, then performs a complete pre-pack inspection. Customer-appointed inspection, visual production updates and plain cartons can also be arranged.
