Manual Reset Thermostat

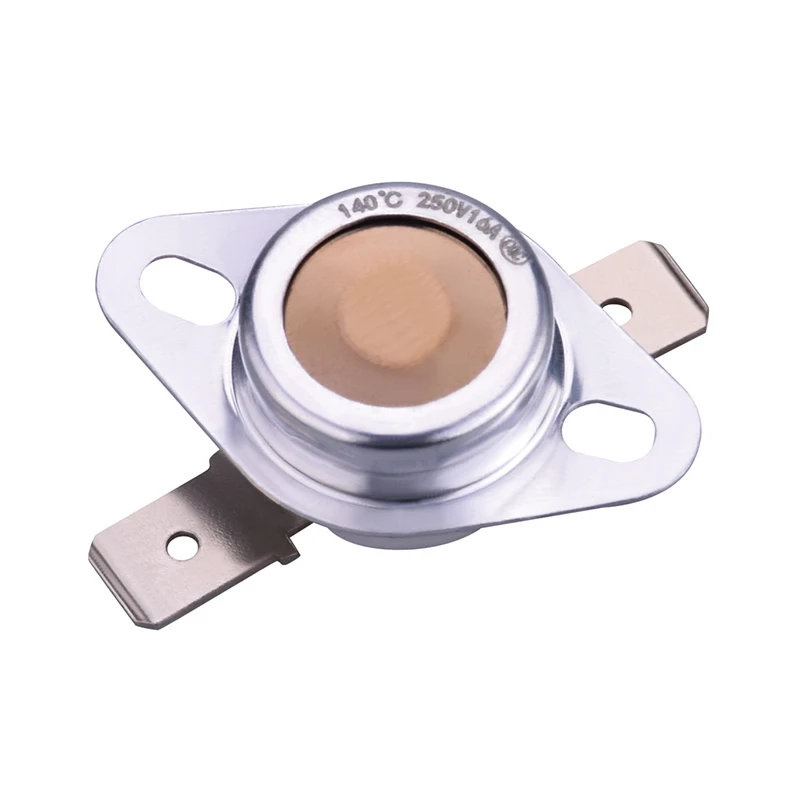

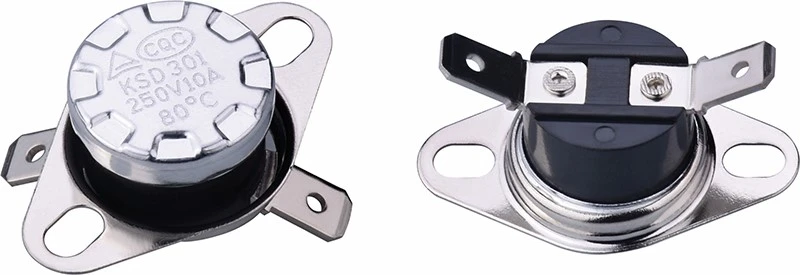

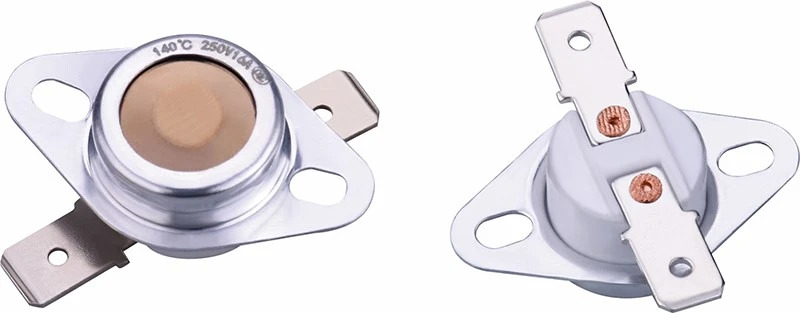

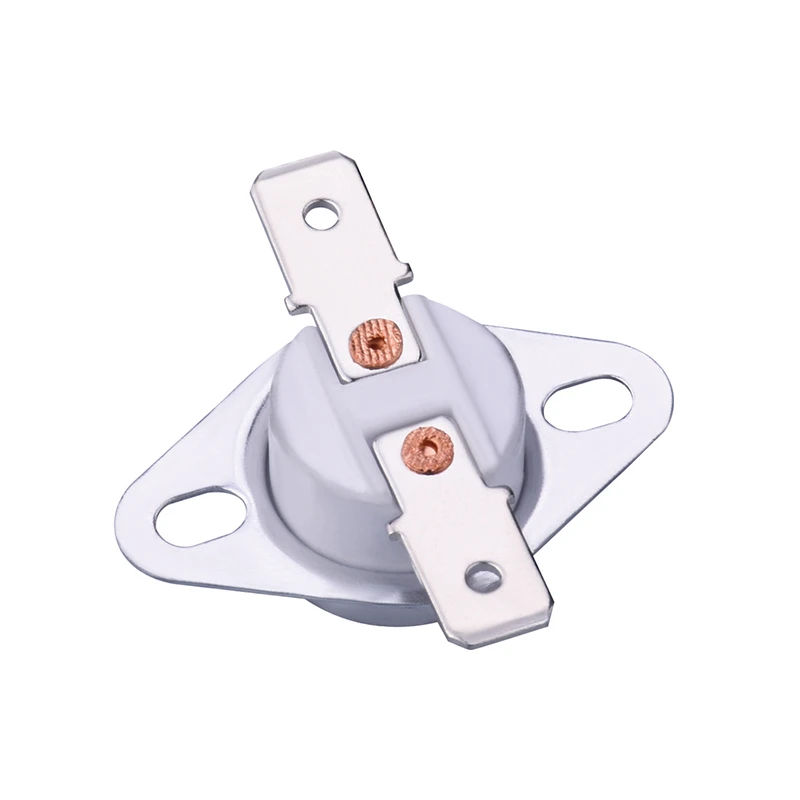

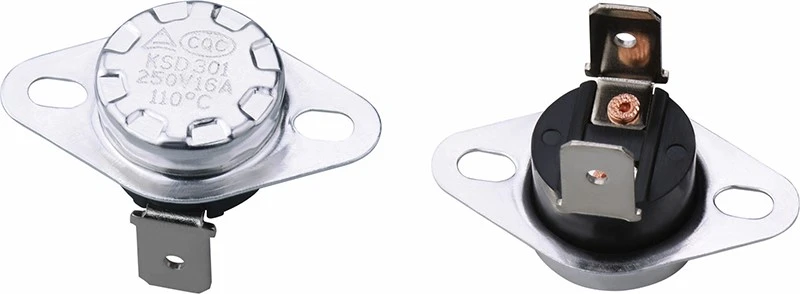

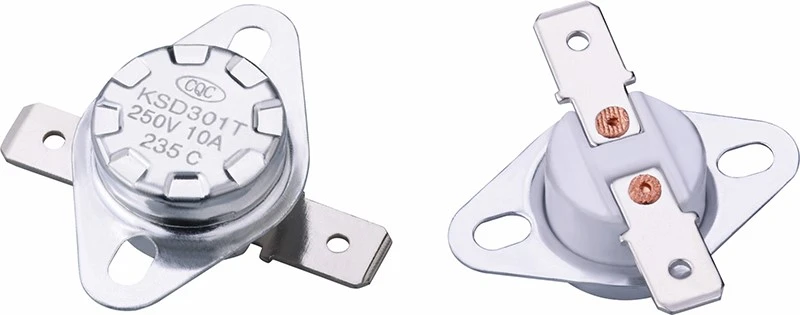

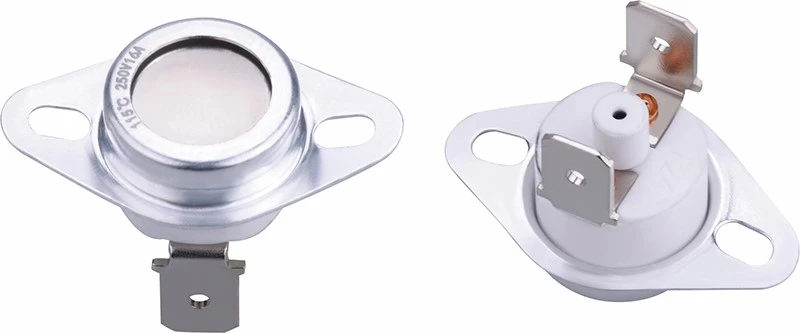

Manual reset thermostat is used when an over-temperature trip should be followed by a human check before the appliance can run again. The KSD-301T arrangement here uses bent terminals and a fixed ring, giving a defined mounting point and a wiring direction that can suit the surrounding structure. The product information lists pressure cookers, dispensers, microwave ovens, electric water heaters and kettles.

Manual reset thermostat specification choices are 10A/16A at 250VAC, 40-260°C switching points in 5°C intervals, ±3°C/±5°C/±10°C temperature accuracy and AC2500V/S dielectric strength. The final design should also leave enough room to operate the reset feature and should document the bent-terminal direction and fixing-hole position.

Gan'en Electronics can review a drawing or physical sample for dimensions, thermal setting and electrical interface and supports OEM, ODM and non-standard development. Regular samples are free excluding delivery cost. The normal MOQ is 10,000 pcs; standard orders are generally produced in about 7 days and customized orders in about 15 days.

Manual reset thermostat lots are checked through material, assembly, finished-unit and shipment stages, then receive a complete pre-pack inspection. Independent inspection is available. A 30-day warranty applies, and any reported damage or abnormality can be reviewed from the model, manufacturing lot, packing record and customer evidence.
