Snap Action Thermostat

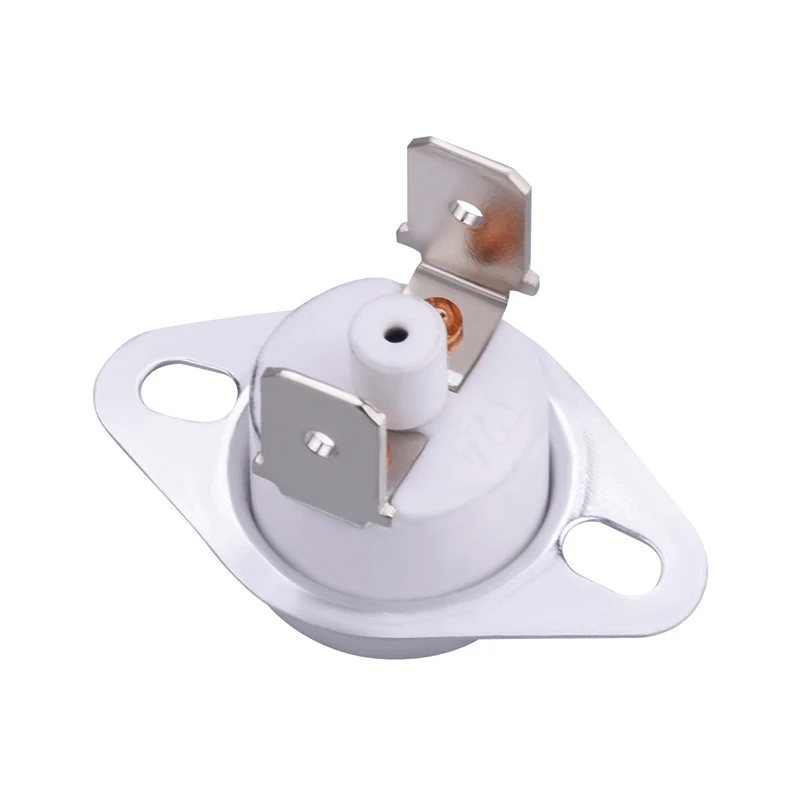

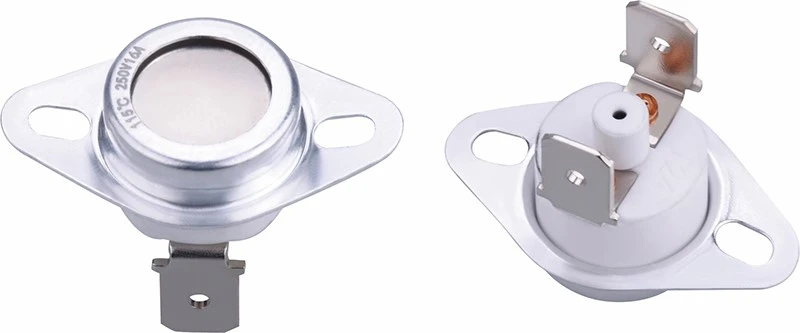

The supplied keyword bakelite body snap action thermostat is retained for this item, while the described hardware is a ceramic KSD-301 thermostat with bent terminals and a movable ring. This version is chosen when the wiring exit or fixing angle needs adjustment. It can be matched to pressure cookers, dispensers, microwave ovens, water heaters and kettles after the actual mounting position is reviewed.

For this bakelite body snap action thermostat entry, electrical options are 10A/16A at 250VAC. The ceramic operating range is 40-260°C in 5°C steps, accuracy may be ±3°C, ±5°C or ±10°C, and dielectric strength is AC2500V/S. High-temperature applications should be tested in the appliance so mounting pressure, heat path and cooling are represented.

Gan'en Electronics can compare an existing part, drawing or prototype, check the ceramic dimensions, terminal angle and ring movement, and provide a sample before the final production version is frozen. OEM, ODM and special designs are supported. MOQ is normally 10,000 pcs; standard samples are free excluding freight, with about 7 days for standard and 15 days for custom production.

The approved bakelite body snap action thermostat version is then controlled by sample, terminal orientation, movable-ring configuration and temperature code. Every unit is checked before packing; third-party inspection and photo/video updates are available. Transit damage can be reviewed against the carton, waybill, packing record and lot number.
