Bakelite Body Snap Action Thermostat

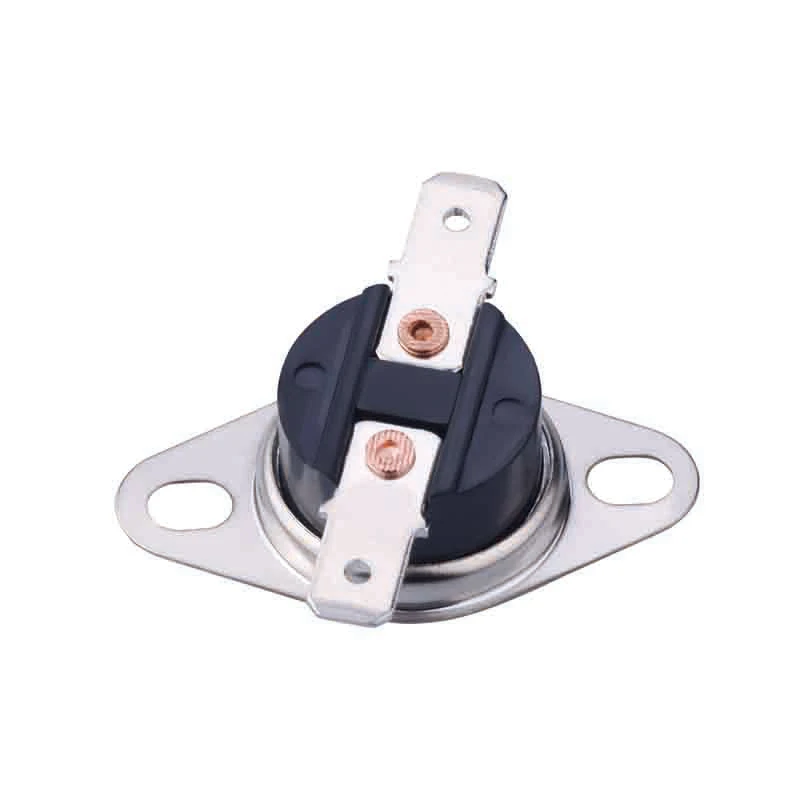

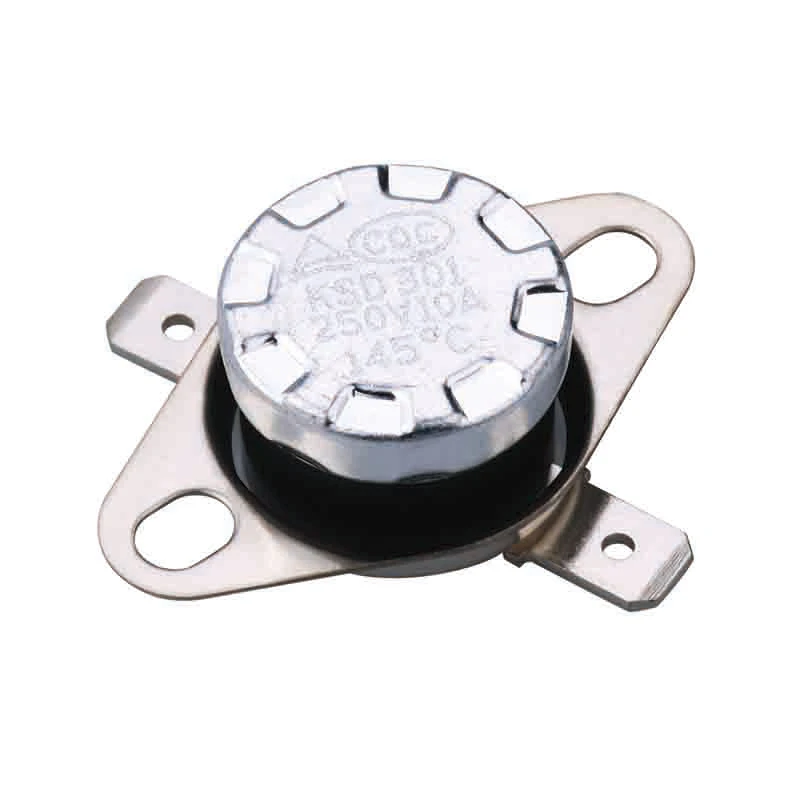

Application fit is the starting point for the bakelite body snap action thermostat. This KSD-301 configuration combines a Bakelite insulating body, straight connection tabs and a fixed ring, giving appliance designers a direct wiring path and a repeatable sensing position. It is intended for heated equipment such as kettles, water dispensers, pressure cookers, microwave ovens and electric water heaters where the mounting point is already defined.

For electrical selection, the bakelite body snap action thermostat is offered at 250VAC with 10A or 16A options. Switching temperatures span 40-150°C and are ordered in 5°C steps. The three available tolerance choices are ±3°C, ±5°C and ±10°C, while dielectric strength is specified as AC2500V/S with no breakdown or flashover under the stated test. The final drawing should show the tab direction, fixing position and thermal contact area as well as the temperature setting.

Manufacturing can be coordinated from the internal bimetal component through final assembly and inspection. Gan'en Electronics supports OEM and ODM work, plus production from an approved drawing or physical prototype. Standard samples can be supplied without sample charge before a bulk run, while courier cost remains separate. The usual purchasing threshold is 10,000 pcs; standard variants are generally completed in about 7 days and customized variants in about 15 days.

Once a bakelite body snap action thermostat version is approved, its sample and specification can be held as the reference for future lots. IQC, process inspection, finished-product checks and outgoing verification are used at different stages, followed by 100% inspection before packing. Buyers may arrange an external inspection, request photo/video status during manufacture, and use unprinted outer cartons when the parts will enter their own branding or warehouse system.
