Bimetal Disc Thermostat

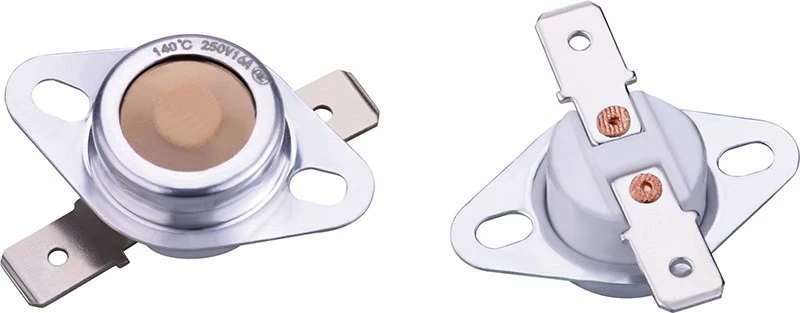

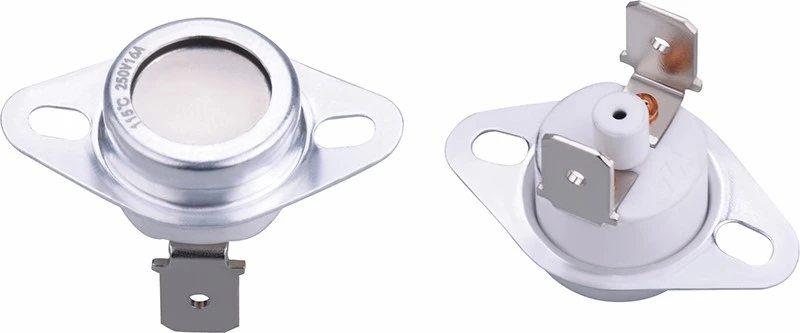

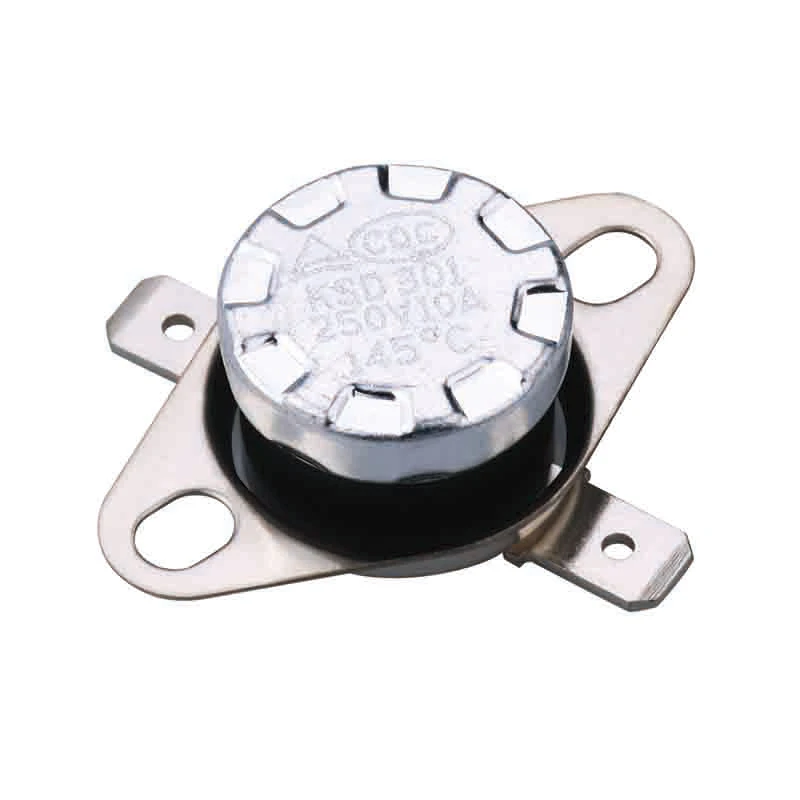

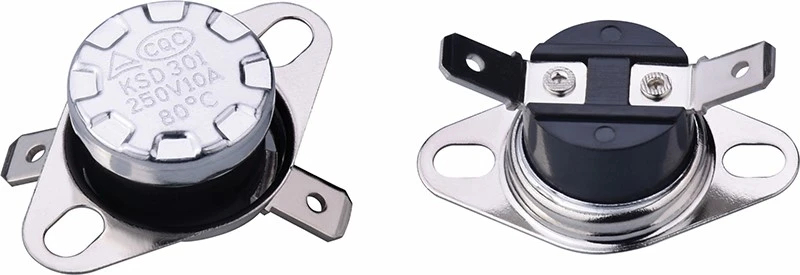

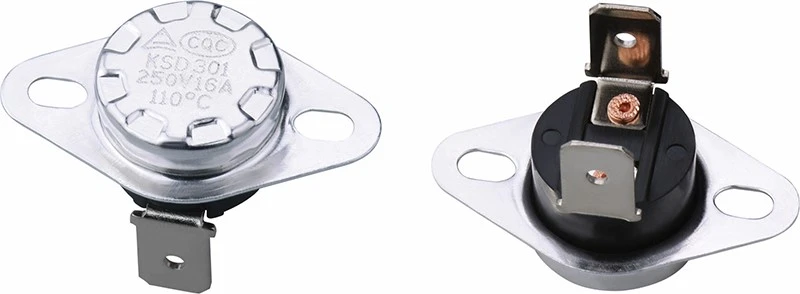

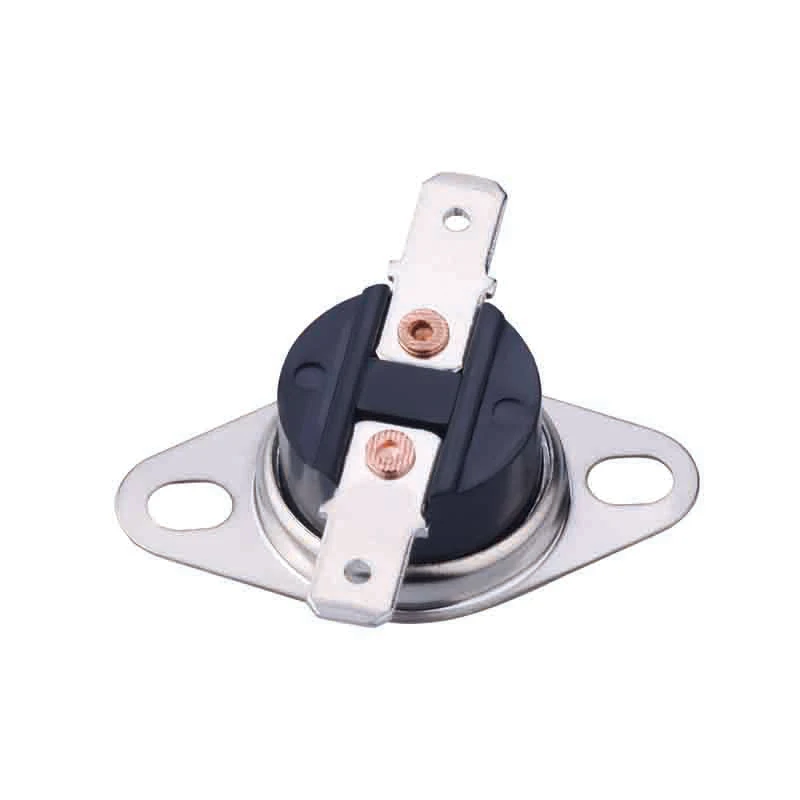

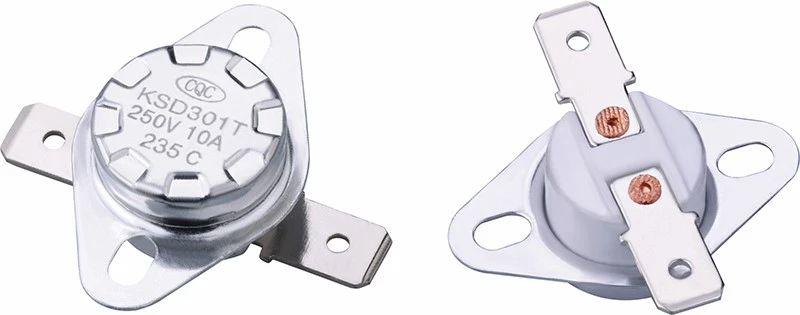

Where wiring direction is restricted by a crowded appliance interior, the bimetal disc thermostat uses a KSD-301 bent-terminal, fixed-ring design with a metal housing and Bakelite insulation. The bent terminals redirect the electrical connection away from nearby parts, while the fixed mounting ring holds the thermostat at a predetermined location. This layout is useful when the installation holes are already fixed or when the wire harness must approach from a specific direction.

Rated options for the bimetal disc thermostat are 10A/16A at 250VAC. The Bakelite version operates across 40-150°C, selectable in 5°C steps, and temperature accuracy may be specified as ±3°C, ±5°C or ±10°C. Dielectric strength is AC2500V/S with no breakdown or flashover under the applicable test conditions. For purchasing approval, terminal bend direction and ring position should be documented alongside current and temperature values so the electrical and mechanical interfaces remain consistent.
