Kds301 Thermostat

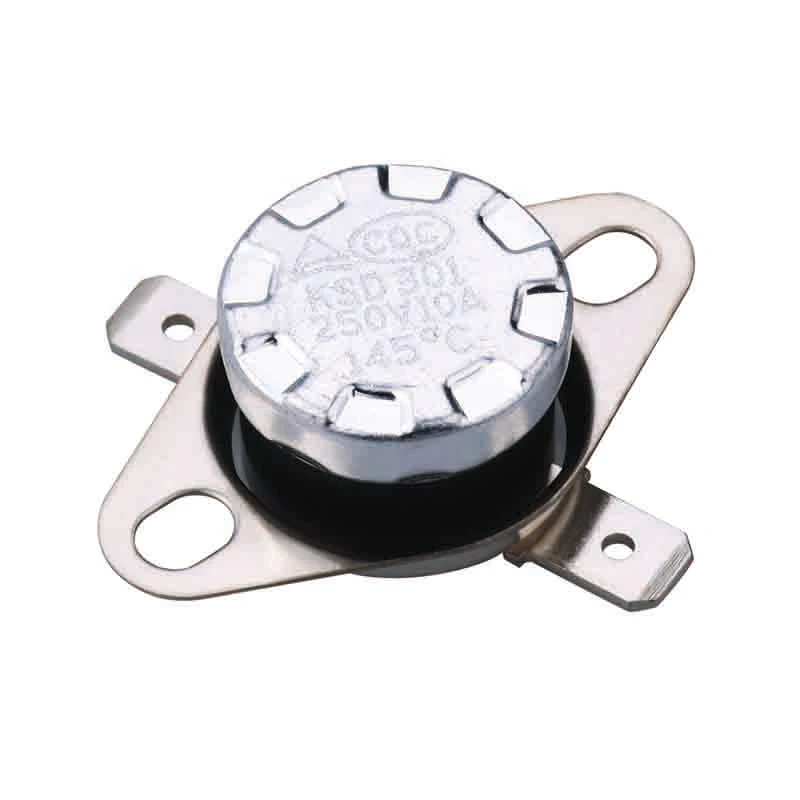

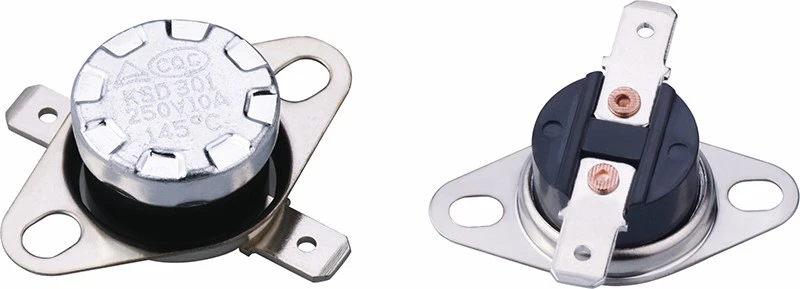

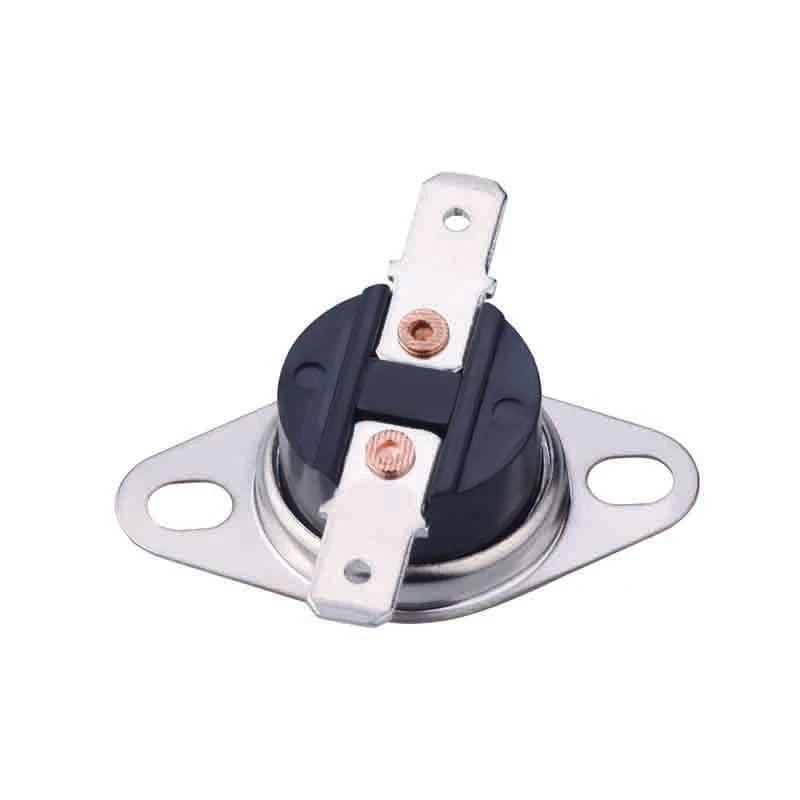

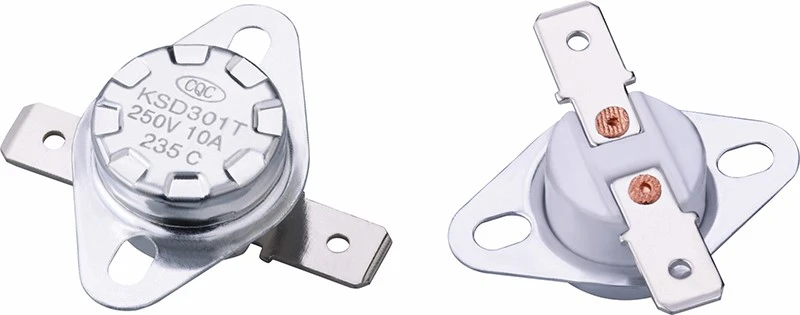

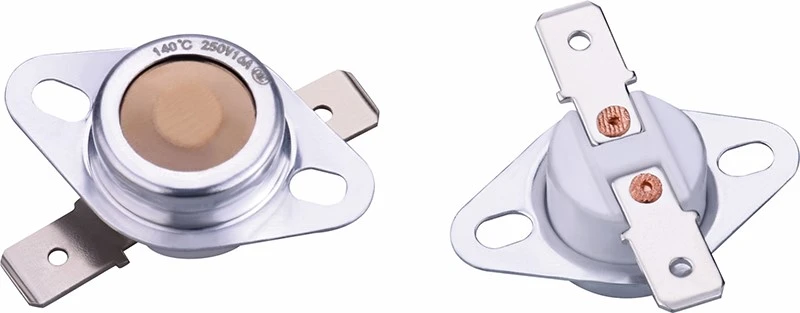

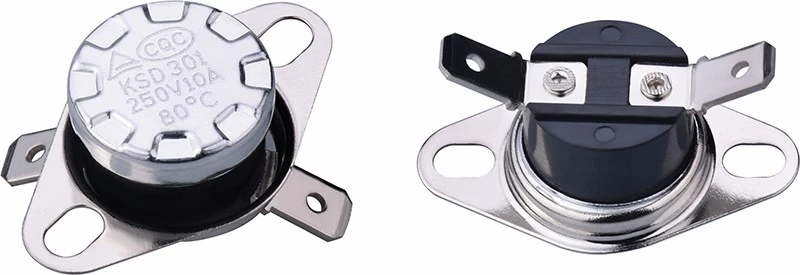

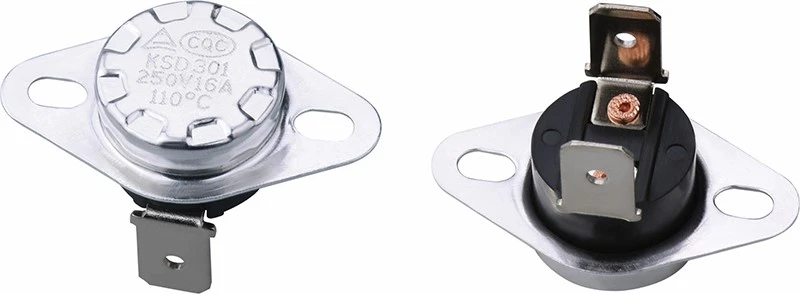

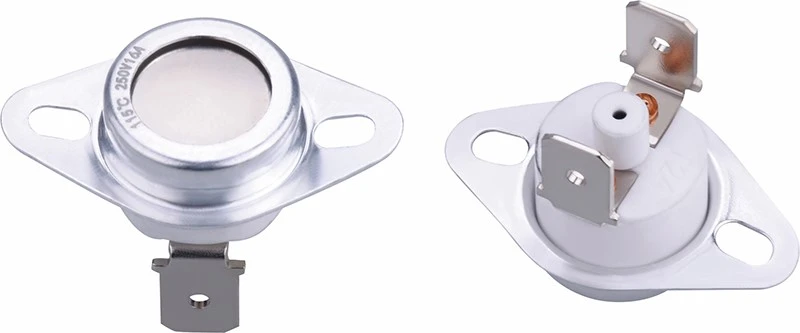

As a configurable thermostat platform, the kds301 thermostat can be selected with straight or bent terminals, fixed or adjustable mounting rings, and either Bakelite or ceramic insulation. Straight terminals suit direct wiring paths, bent terminals redirect the connection, fixed rings emphasize repeatable positioning, and movable rings provide more installation-angle freedom. These combinations allow one product family to cover temperature-control and protection requirements across multiple types of heating appliances.

The kds301 thermostat family is rated 10A/16A, 250VAC. Bakelite versions cover 40-150°C and ceramic versions cover 40-260°C, both in 5°C selection steps. Temperature accuracy can be specified as ±3°C, ±5°C or ±10°C, and dielectric strength is AC2500V/S. Buyers managing several appliance models can build a specification matrix around current, operating temperature, tolerance, insulation material, terminal style and ring type to keep each variant clearly identified.

Gan'en Electronics links bimetal stamping, forming and heat treatment with complete thermostat assembly, supported by an R&D and testing team. This makes it possible to coordinate projects involving multiple temperature settings, terminal arrangements or appliance models under one sourcing program. OEM, ODM and development from drawings or prototypes are supported. Standard samples are free excluding freight; the usual MOQ is 10,000 pcs, with about 7 days for standard and 15 days for custom production.

For long-term supply, each kds301 thermostat variant can retain its own approved sample, parameter sheet and order record to reduce mixing or specification errors. Production is managed through incoming inspection, process checks, semi-finished/finished inspection, outgoing reinspection and batch traceability, followed by 100% inspection before packing. Third-party inspection is supported, and repeat orders can be scheduled against previously confirmed process and specification records.
