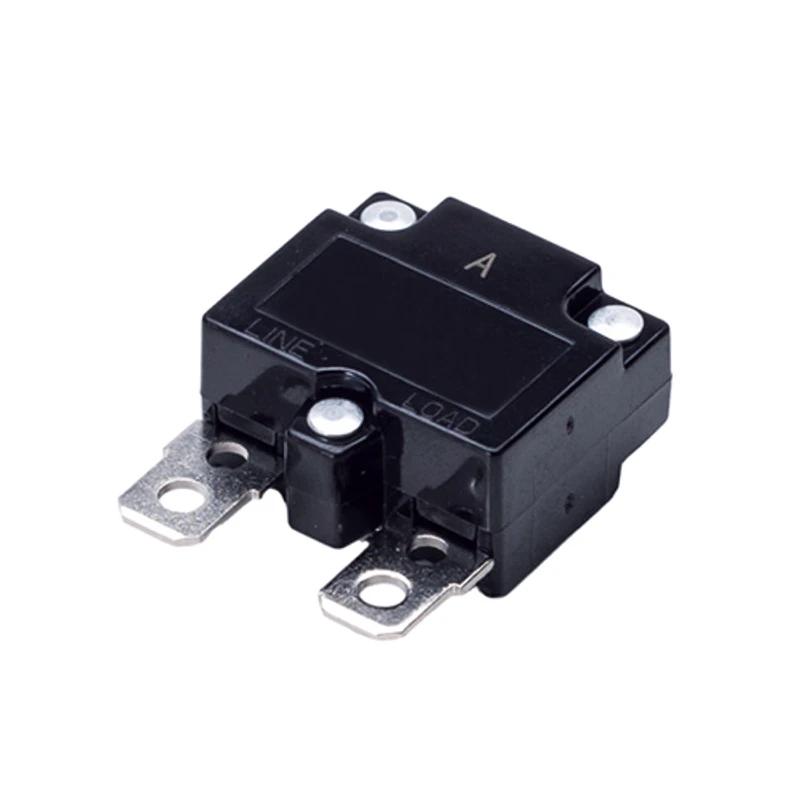

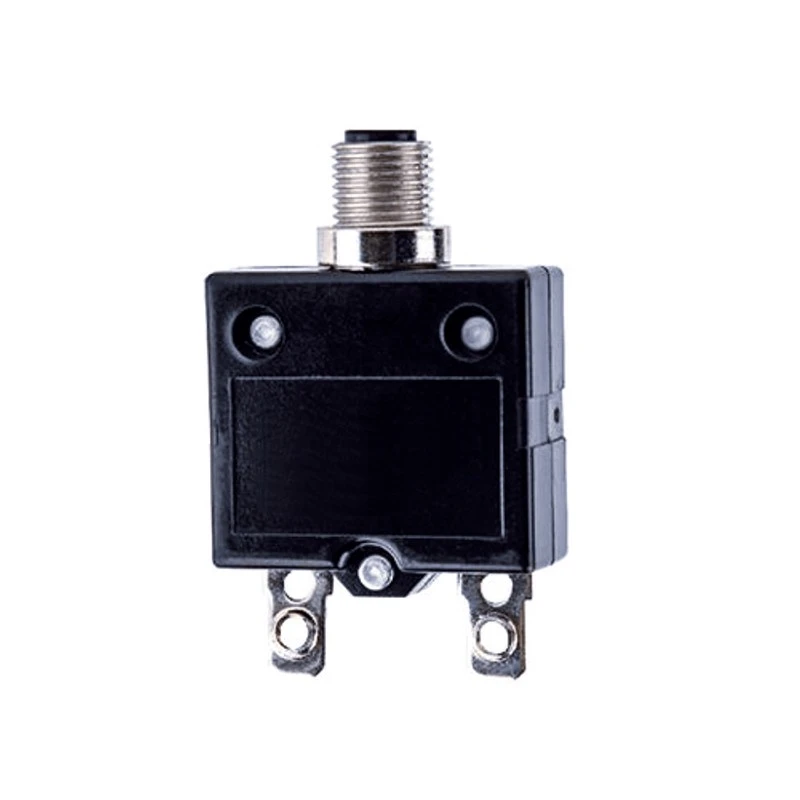

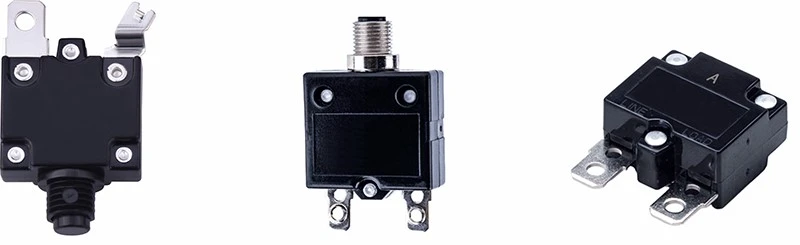

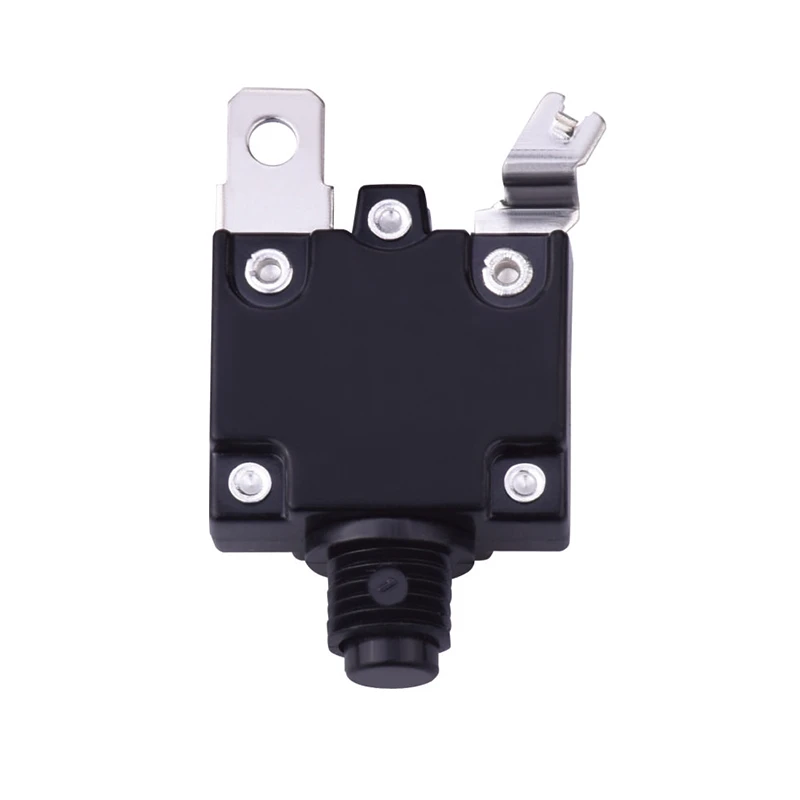

Three Phase Motor Thermal Protector

Three-phase motors can differ substantially in starting current, load profile and heat-dissipation structure, so the Three Phase Motor Thermal Protector should be matched to the specific motor platform. The product is intended for thermal protection of three-phase motors and related driven equipment, and the same overload-protection series may also be used with generators, transformers, power supplies, power tools, UPS systems, test instruments and fitness equipment.

The Three Phase Motor Thermal Protector can be matched to 125VAC, 250VAC or 32VDC, with an AC frequency of 50-60Hz. Dielectric strength is 1500VAC/1min, rated switching capacity is three times rated current, and the test ambient is 25°C ±3°C. Beyond those base values, the order should identify the three-phase system voltage, motor rated current, duty cycle, desired protection behavior, reset method and mounting structure.

Gan'en Electronics combines thermostatic bimetal and overload-protector R&D, manufacturing and testing. The process chain from bimetal stamping, forming and heat treatment to complete protector assembly helps keep the core actuating element and final structure under one manufacturing system. Projects covering several motor power levels can be separated by drawing, parameter set and approved sample. The regular MOQ is 10,000 pcs, with typical production of 7 days for standard and 15 days for custom items; standard samples can be provided free.

OEM, ODM and drawing- or prototype-based production are available for the Three Phase Motor Thermal Protector. A dedicated order contact can control sample versions, model numbers, quantities and delivery dates and can provide production photos or videos. Full inspection is completed before packing, third-party inspection can be arranged, and after-sales support can continue with batch tracing, remote fault analysis and quality-issue handling.
