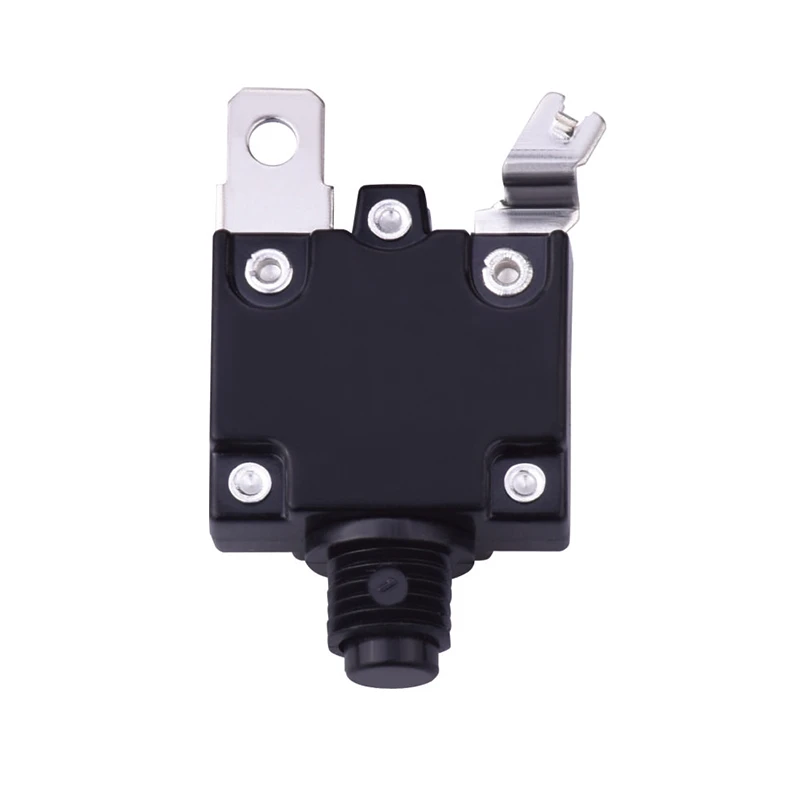

Electric Motor Overload Protector

The Electric Motor Overload Protector is sourced most effectively by defining the machine first. Useful information includes how often the motor starts, how long it runs continuously, the size of normal load changes, the space available for installation and the local cooling condition. Those inputs establish the protection requirement. Related applications in the same source data include generators, transformers, power supplies, power tools, UPS equipment, instruments, exercise machines and food-processing equipment.

For an established motor, Gan'en Electronics can work from the current protection part or interface drawing; for a new platform, the first step can be a mechanical sample followed by live running tests. The company produces bimetal components, assembles protectors and has independent test capability. Stated monthly capacity is 4 million overload protectors. MOQ is generally 10,000 pcs, with about 7 days for ordinary production and 15 days for customized production.

Electrical reference data for the Electric Motor Overload Protector are 125VAC/250VAC/32VDC, AC frequency 50-60Hz, dielectric withstand 1500VAC for one minute, switching capacity equal to three times rated current, and a 25°C ±3°C test ambient. The rated current, reset behavior, terminal geometry and outer dimensions remain model-specific and must be tied to motor power, heat dissipation, duty and the agreed interface rather than copied from a generic listing.

Free standard samples of the Electric Motor Overload Protector are available before a volume order, with courier cost separate. The production record includes incoming inspection, process control, final-unit checking, outgoing verification and after-sales traceability, followed by 100% inspection before packing. Third-party inspection can be added, and customers handling several motor models may request photo/video progress updates for easier order control.
