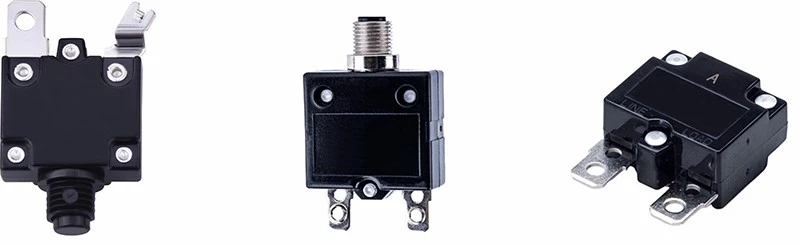

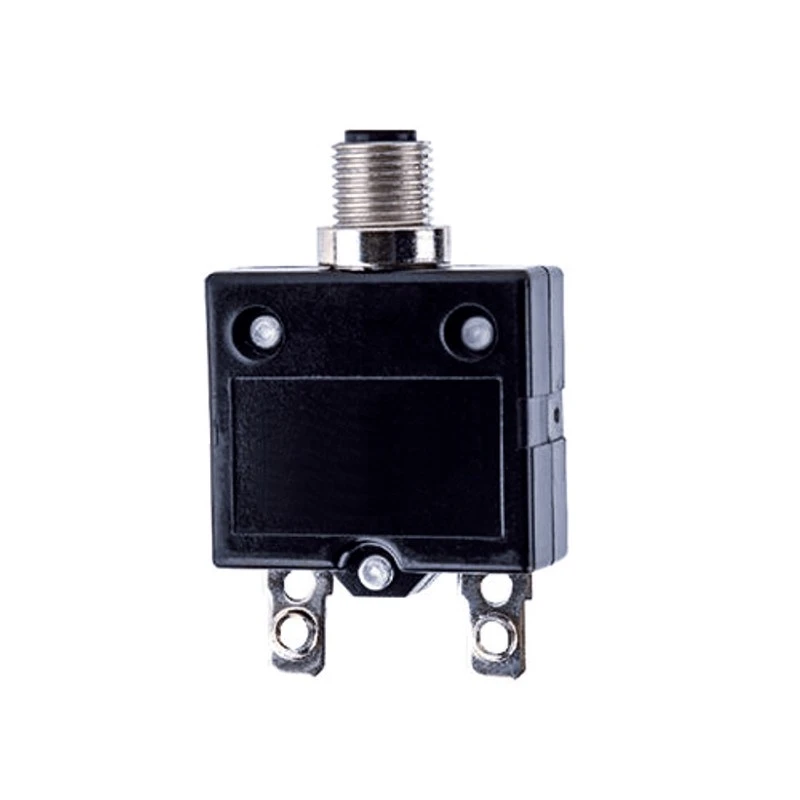

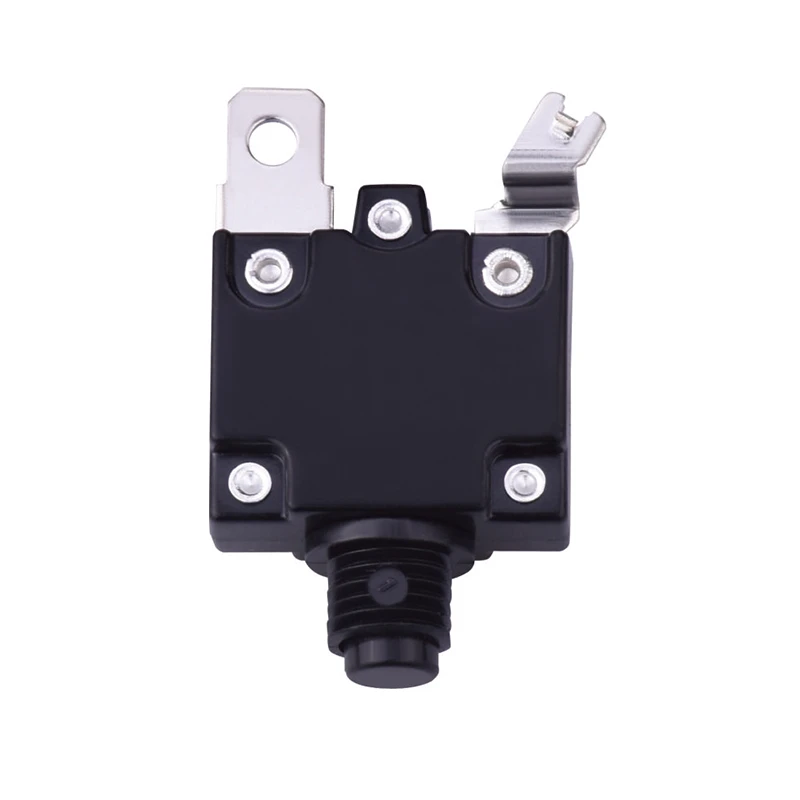

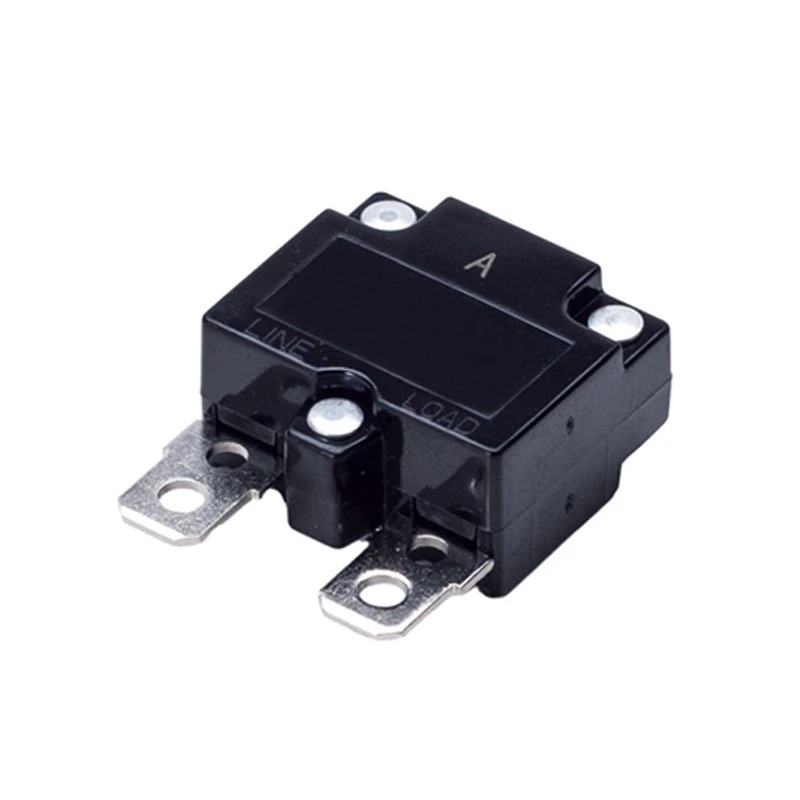

Wall Switch Overload Protector

Wall-switch products usually have tightly defined enclosure space, terminal layouts and fixing points, so the Wall switch overload protector must be checked for mechanical compatibility as well as electrical rating. Overall dimensions, terminal orientation, mounting method and the relationship to surrounding switch components should be reviewed together. Standard wall switches, custom switch modules and products with different load levels can each be assigned their own specification using drawings and approved samples.

The Wall switch overload protector supports 125VAC, 250VAC or 32VDC with 50-60Hz AC operation. Dielectric strength is 1500VAC/1min, rated switching capacity is three times rated current, and the reference test ambient is 25°C ±3°C. Rated current and the exact trip/reset arrangement are not presented as a single universal configuration and should be matched to the wall-switch circuit and real load conditions before mass production.

Gan'en Electronics has R&D, testing and process-engineering resources and can manufacture from bimetal stamping, forming and heat treatment through complete overload-protector assembly. Customer projects can include structural review, tooling development and process optimization. OEM, ODM and drawing-based manufacturing are supported. The usual MOQ is 10,000 pcs; free standard samples are available, with typical production of about 7 days for standard products and 15 days for custom products.

Different panel styles, load ratings or mounting structures for the Wall switch overload protector can be managed as separate versions under one series, with a dedicated contact tracking samples, quantities and delivery status. Production includes incoming, process, semi-finished, finished and outgoing checks, followed by full inspection before packing. Third-party inspection is accepted, and batch traceability provides a clear reference for repeat orders.
