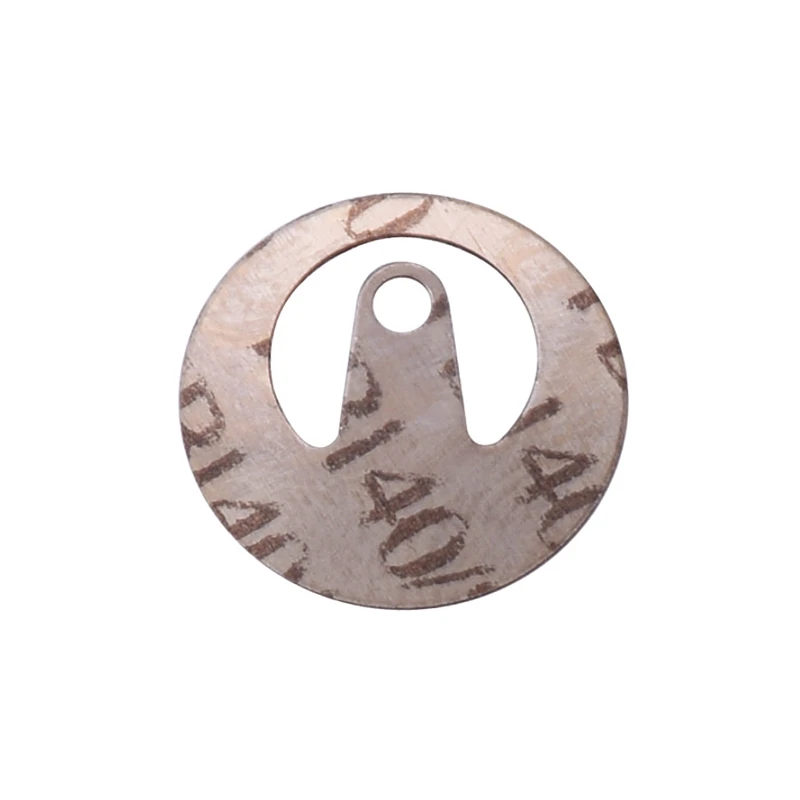

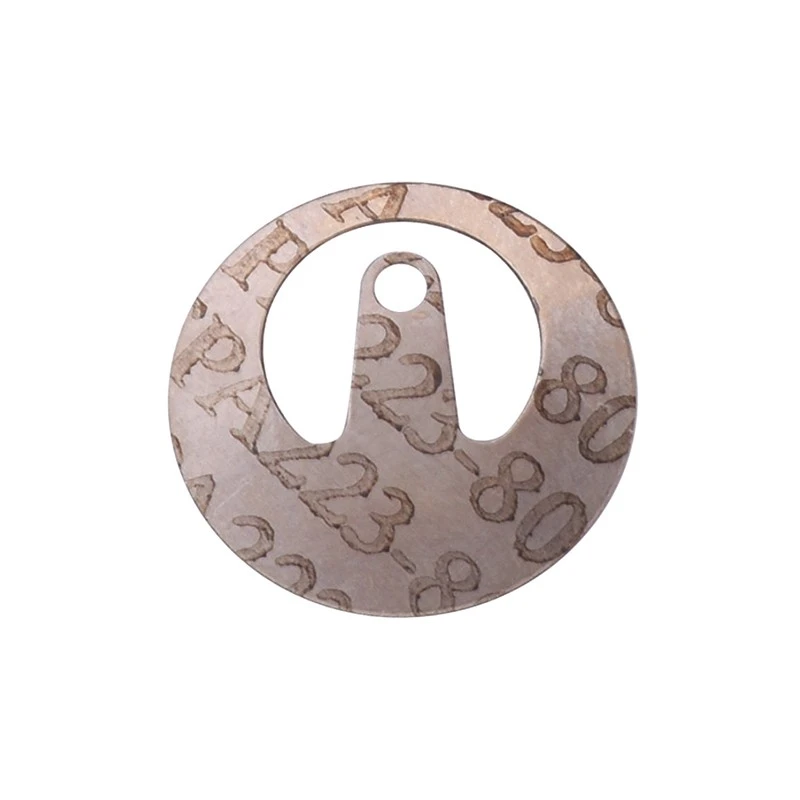

Slotted Thermostatic Bimetal Element

Drawing control is especially important for the Slotted thermostatic bimetal element because the slot itself forms part of the mechanical interface. In a kettle thermostat, it may locate a fixing point, clear an internal feature or define where the moving element engages. Manufacturers with an existing support structure can therefore specify both the external contour and the slot geometry rather than adapting the switch around a generic bimetal blank.

Gan'en Electronics can begin from the customer's original part or CAD drawing, check the slot against the intended assembly and then progress through tooling, stamping, forming, heat treatment and thermal verification. Multiple slot patterns can be assigned separate drawing numbers to avoid mixing. Standard samples are free apart from freight, MOQ is usually 10,000 pcs, standard production is about 7 days and custom production about 15 days.

Thermally, the Slotted thermostatic bimetal element is specified for operation from 100-250°C, reset from 0-100°C and ±5°C temperature tolerance. Salt-spray exposure can be requested for 24, 48 or 72 hours. Slot position, slot width and length, full outline, fixing method and operating/reset temperatures should all appear on the approved specification; the finished thermostat should then be used to confirm the actual movement.

Before shipment, the Slotted thermostatic bimetal element is completely inspected and may also be checked by a third party. A dedicated order contact can keep slot versions and temperature batches separated. If transportation pressure causes a part to bend, carton condition, outer packing, damaged pieces and waybill details can be compared with the packing record and manufacturing batch to determine what happened.
