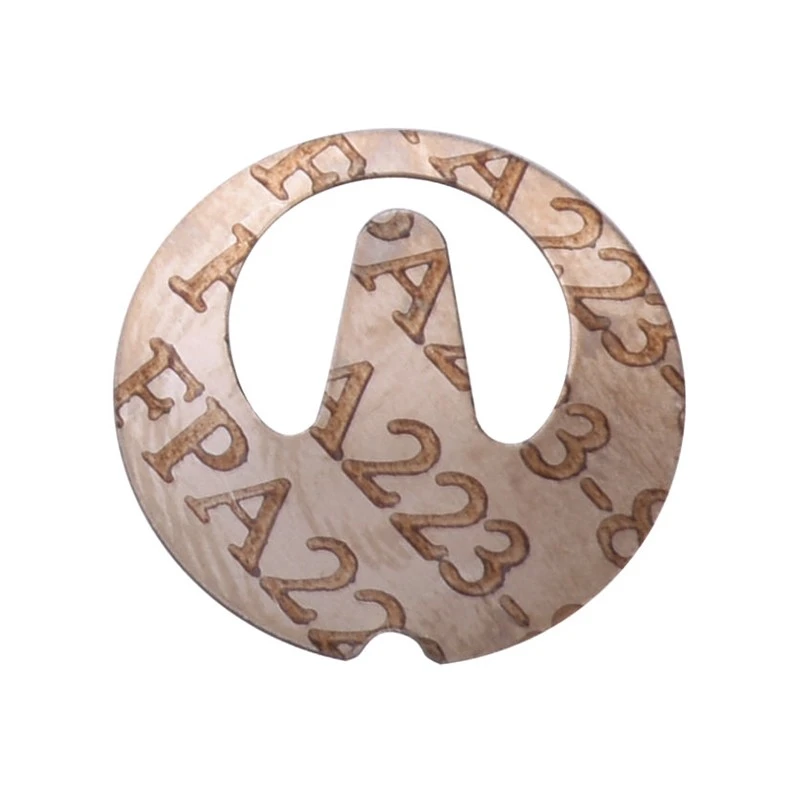

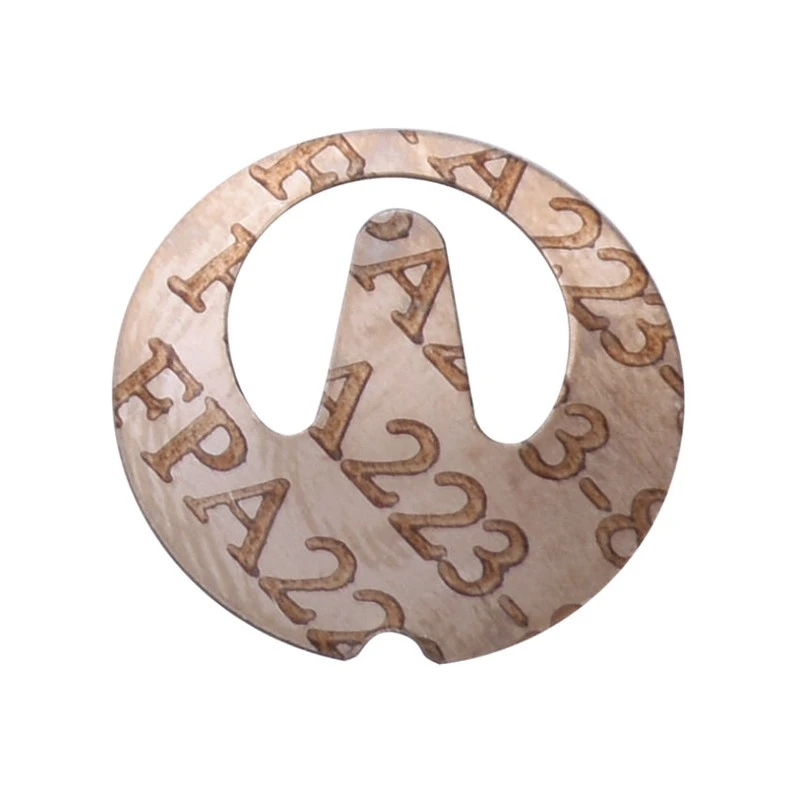

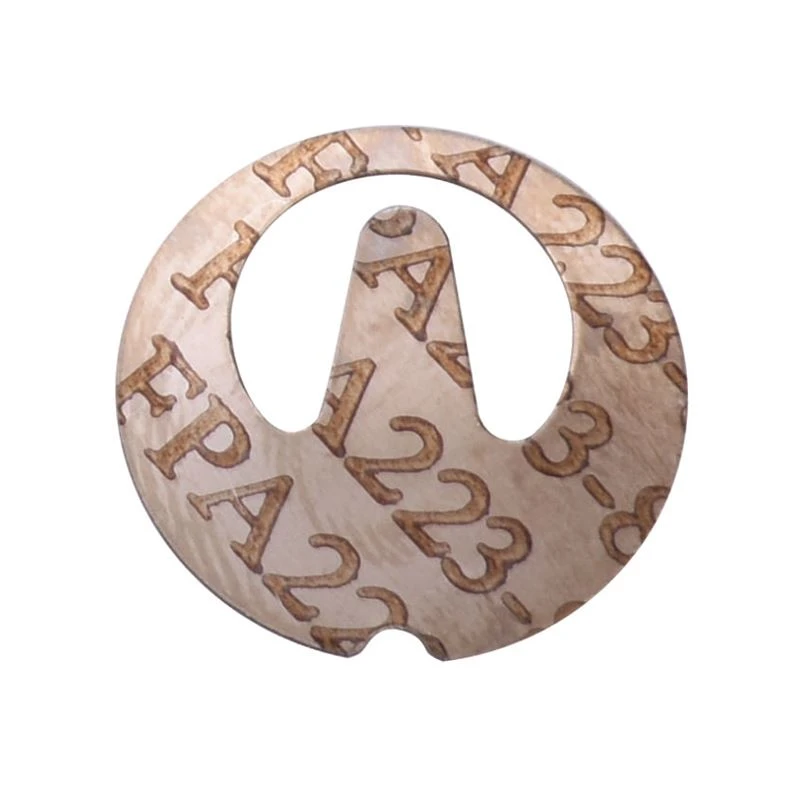

High Sensitivity Bimetal Disc

For KSD-301 snap-action thermostat projects that require a circular actuating element, the High Sensitivity Bimetal Disc can produce a snap deformation at the specified temperature and drive the internal mechanism. Actual switching behavior depends on the material condition, disc diameter, thickness, crown height, assembly preload and contact structure, so the disc should be validated as part of the complete thermostat system rather than as an isolated component.

The High Sensitivity Bimetal Disc has an operating range of 40-250°C and a reset range of 0-200°C, with ±5°C or ±10°C temperature tolerance. Salt-spray testing can be arranged for 24, 48 or 72 hours. The source information does not provide quantified response time, travel or force values for the term "high sensitivity," so the target behavior should be confirmed by sample testing and the final dimensions should be fixed by drawing.

Gan'en Electronics can manufacture from bimetal stamping, forming and heat treatment through finished thermostat assembly. The R&D and testing team can develop samples around the required operating range, reset range and disc geometry. The normal MOQ is 10,000 pcs, standard production is generally about 7 days and customized production about 15 days. Standard samples can be provided free, with courier charges paid by the customer.

OEM and ODM projects are supported for the High Sensitivity Bimetal Disc, and different disc concepts can be sampled separately before the final drawing and parameters are frozen. Mass production includes incoming, in-process, semi-finished, finished and outgoing inspections, followed by complete checking before packing and support for third-party inspection. After-sales analysis can use model, batch and customer test results for retesting and continuous improvement, and a 30-day warranty is provided.
