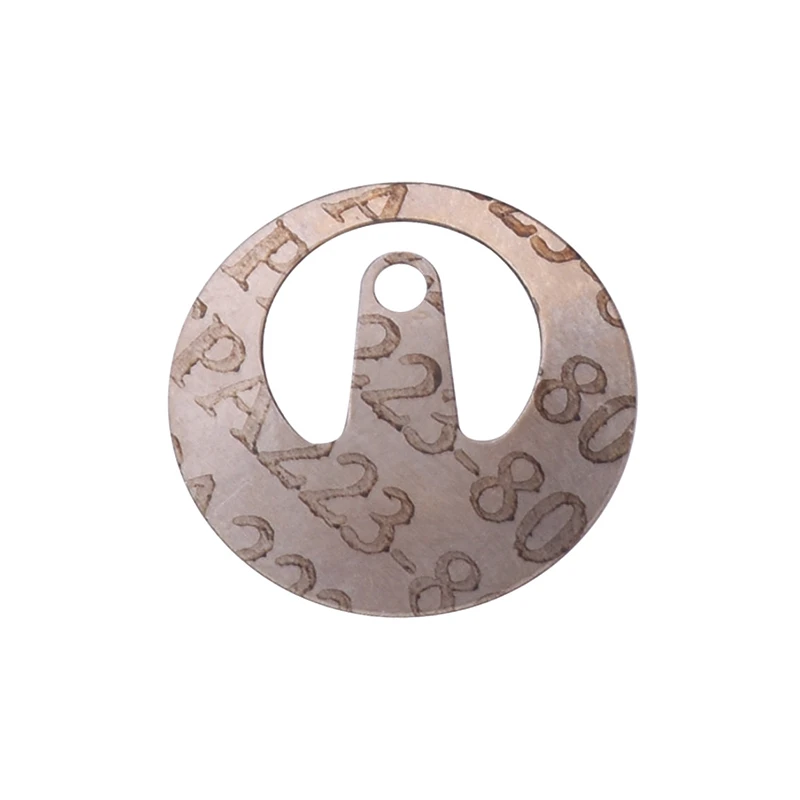

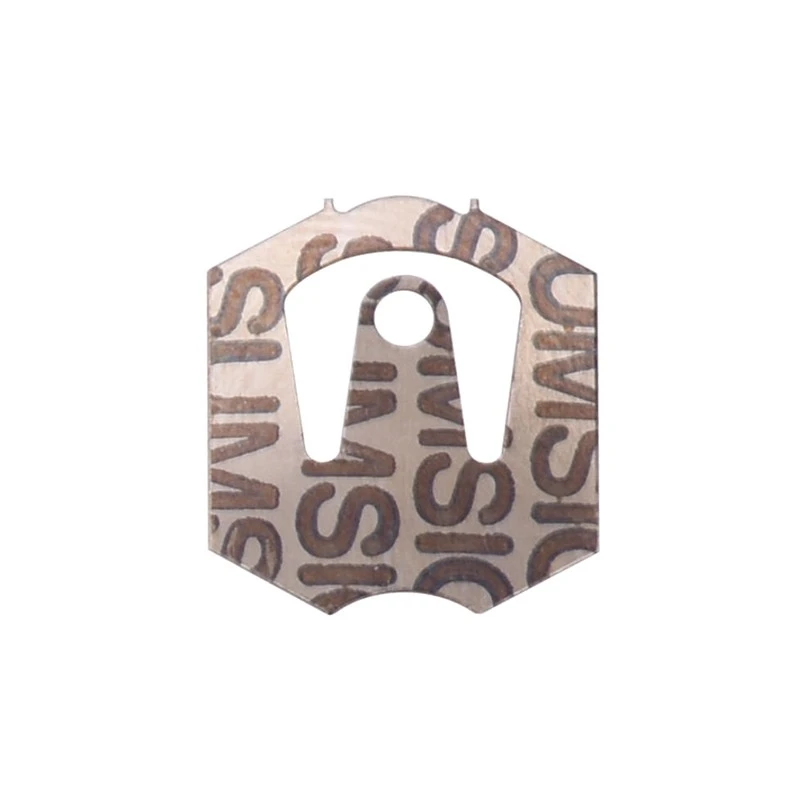

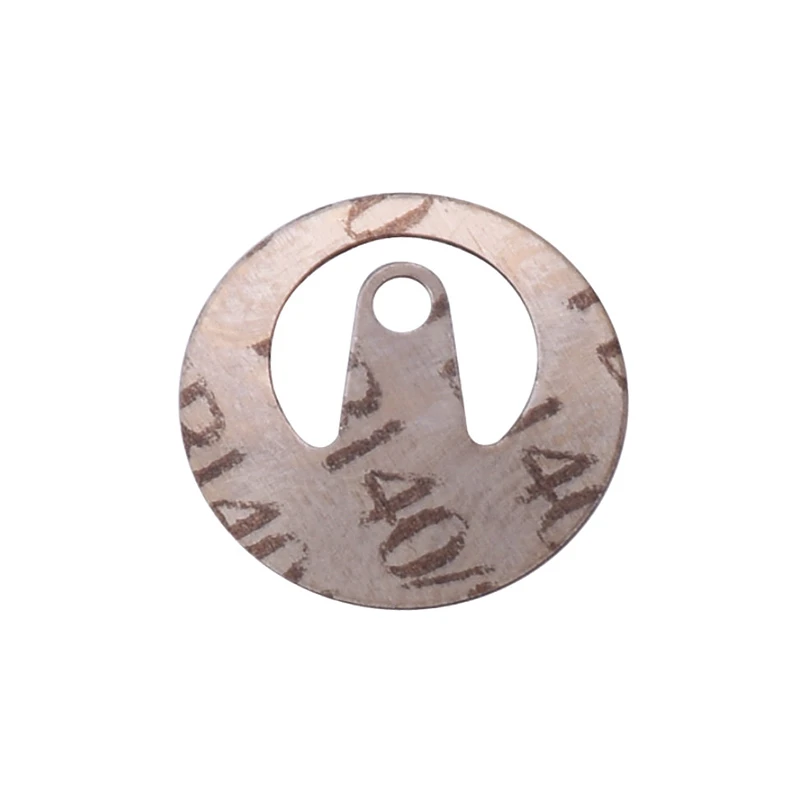

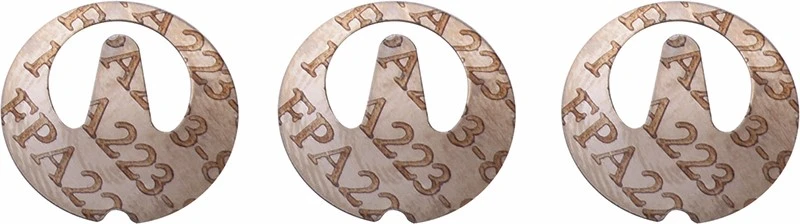

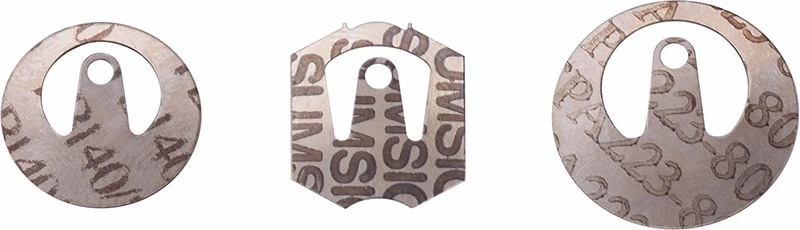

Electric Iron Bimetallic Strip

Electric irons vary in soleplate design, thermostat mechanism and sensing location, so the Electric Iron Bimetallic Strip needs to be matched to the specific appliance model. As the strip heats, it deforms and works with internal contacts, temperature-adjustment components or protection structures to provide mechanical actuation. The part is suited to iron manufacturers, thermostat producers and component suppliers that purchase the bimetal to a controlled drawing.

The Electric Iron Bimetallic Strip has an operating-temperature range of 100-250°C and a reset range of 0-100°C, with a ±5°C temperature tolerance. Salt-spray testing can be specified for 24, 48 or 72 hours. No universal profile dimensions, material thickness, travel or force values are stated, so purchasing approval should consider the target temperature setting, hole positions, bends, fixing method and the customer's existing part sample.

Gan'en Electronics can customize bimetal profiles, slots, holes and temperature parameters using in-house stamping, forming, heat treatment and thermostat-assembly capability. Confirmed drawings and samples can then be converted into controlled production references. The usual MOQ is 10,000 pcs. Standard samples are free before mass production; standard items generally take about 7 days and customized items about 15 days.

Different power ratings or temperature-adjustment settings within one appliance family can use separate specification numbers for the Electric Iron Bimetallic Strip and be scheduled through flexible production. Photo or video updates are available during manufacturing. Shipment uses plain outer cartons, and because thin bimetal parts can deform under external pressure, pearl cotton, rigid cartons or divided packing cells may be used for reinforcement according to the actual packing requirement.
